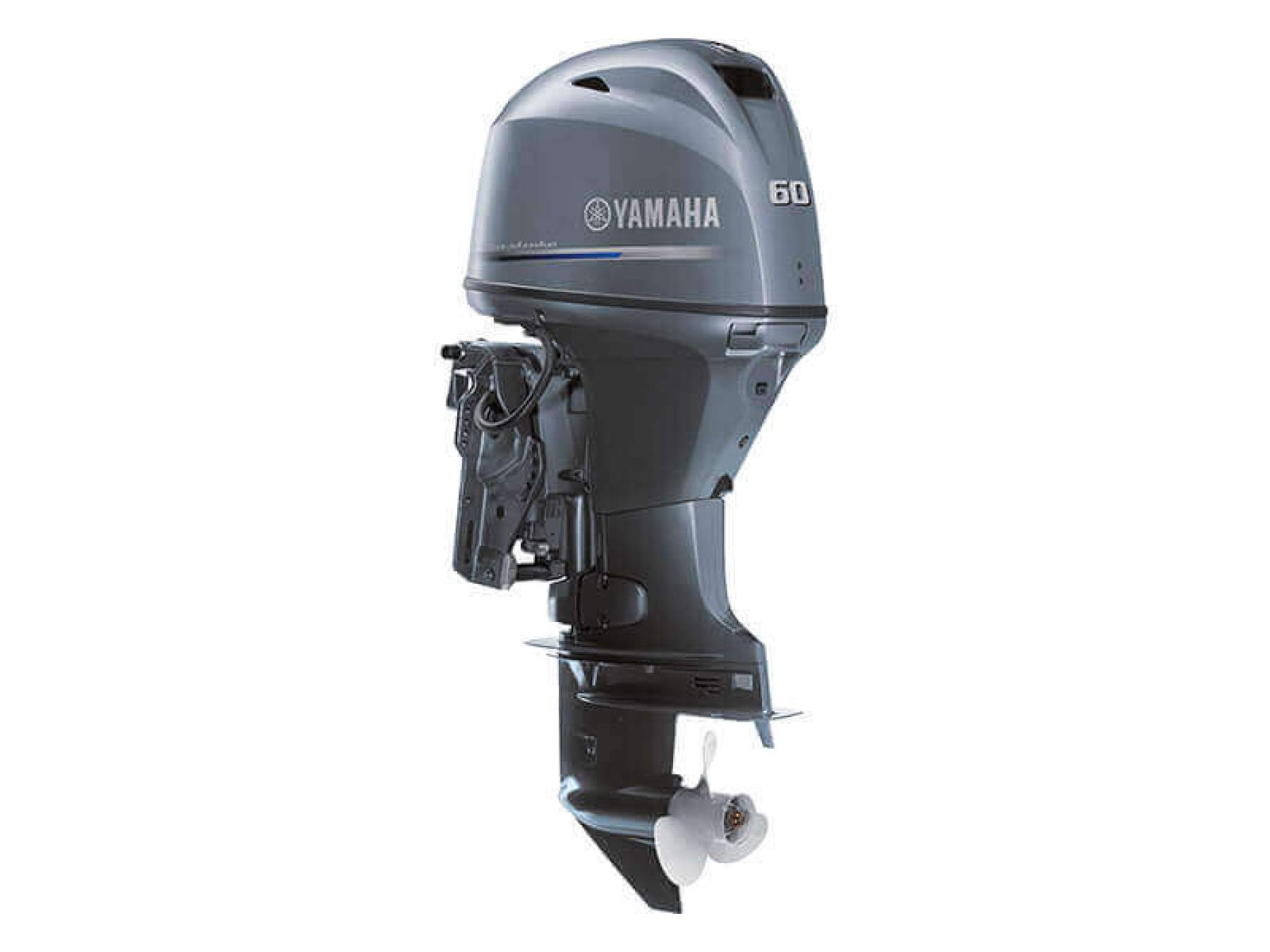

The class-leading F60 has been hailed as one of the finest mid-range outboards ever produced. Brilliant fuel economy matched with great torque and power means versatility that is second to none.

Within the F60 is a silky-smooth, 996cc, four-cylinder marine engine, that delivers an excellent power-to-weight ratio and exceptional refinement and fuel-efficiency. Out of the entire 4-cylinder 60 horsepower category, the F60 is the only Japanese Manufactured engine in its class; which boasts the reliability, refinement and quality that Yamaha engines are renowned for.

Utilising Yamaha’s exclusive Multi-Point Fuel Injection System (EFI) and Electronic Control Module (ECM), the F60 delivers impressive power and torque, smooth and comfortable operation, low noise levels and emissions, and the best fuel-economy in its class.

Features

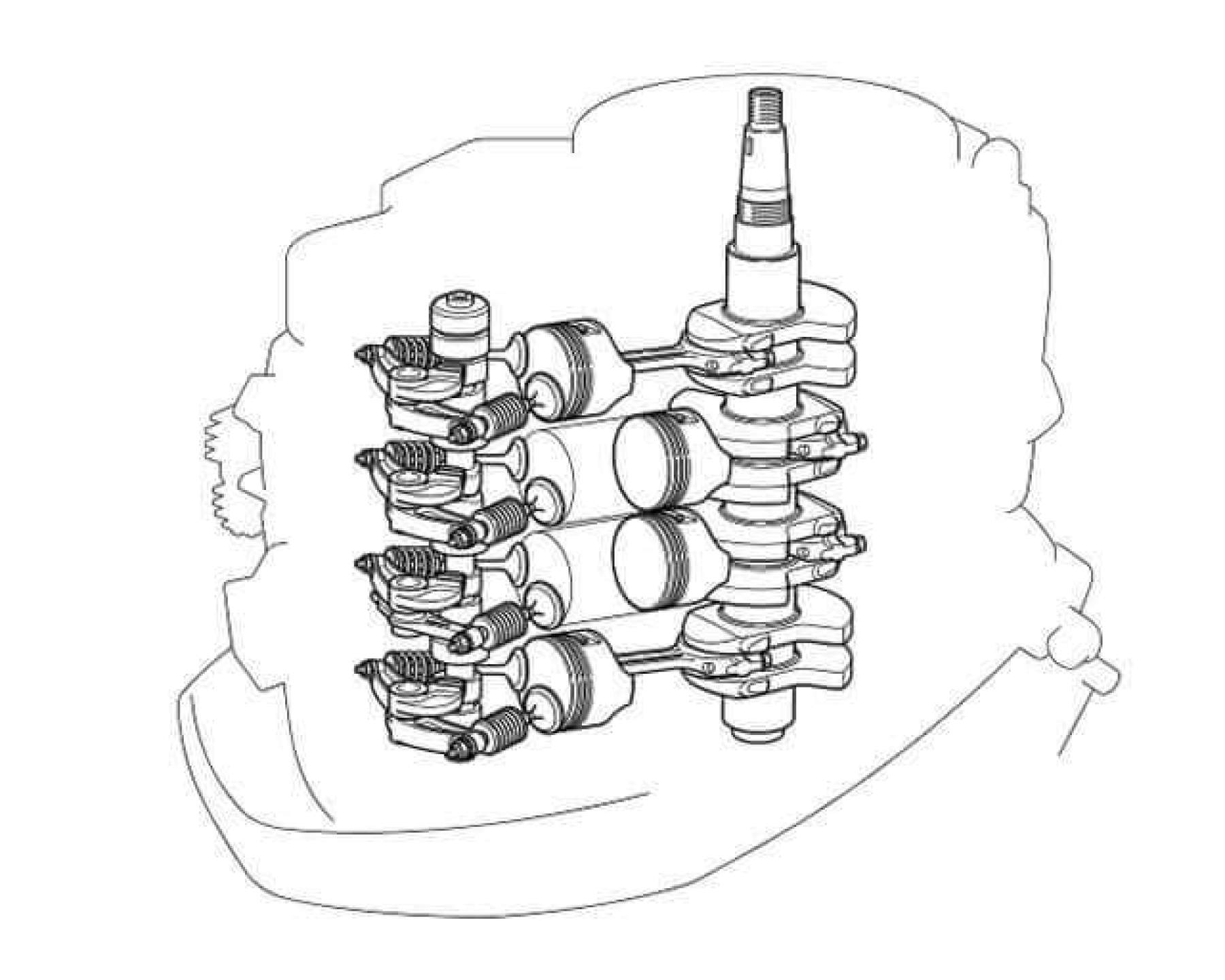

996cc 4-Cylinder Engine

The 1.0 litre, eight-valve, single-overhead camshaft, four-cylinder, long stroke design delivers ultra-smooth, useable power with low noise and vibration levels.

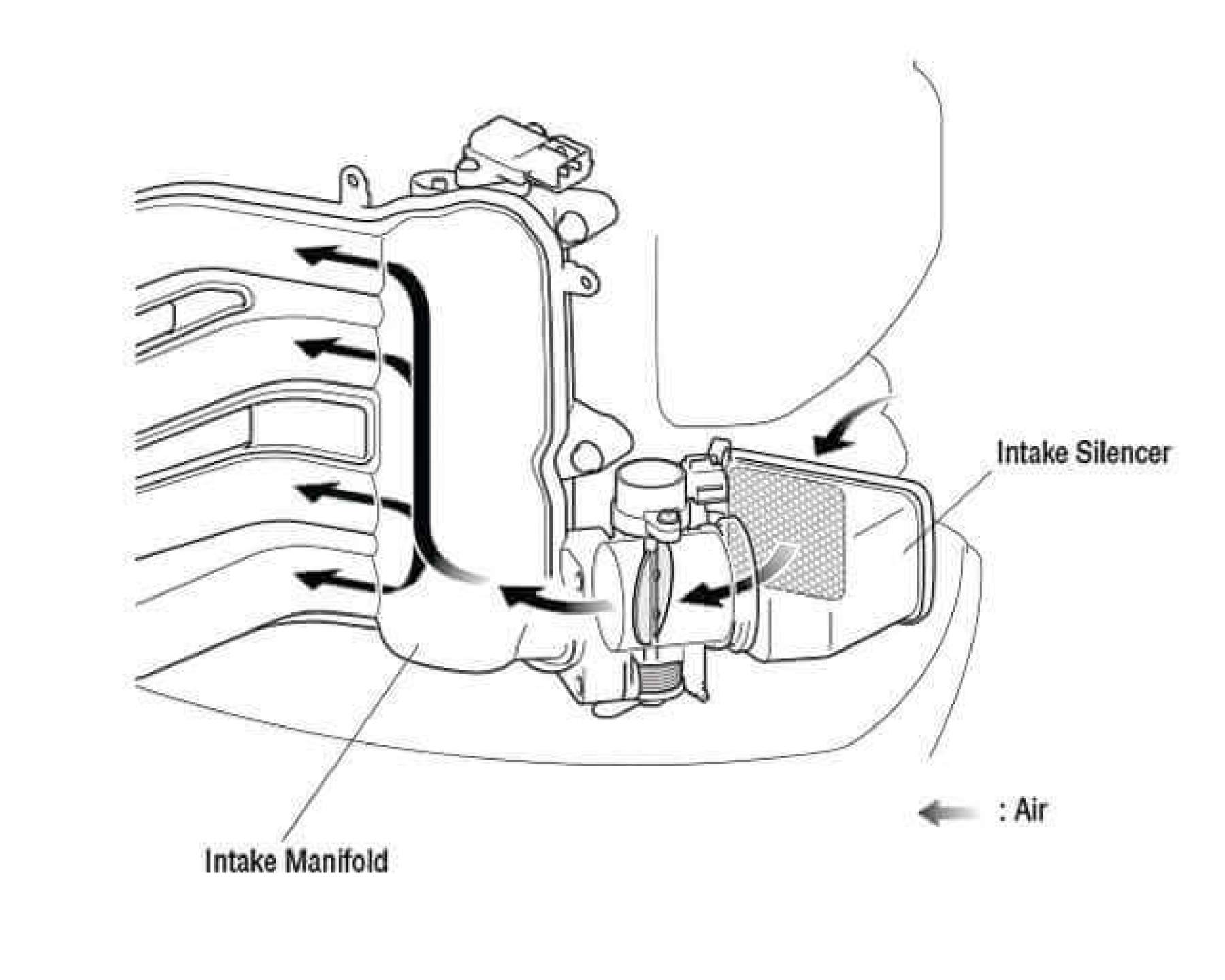

Large Single Throttle Valve

Air flow is precisely delivered to all four cylinders based on the demands of the driver and combustion conditions. The air is pulse-tuned, before it reaches the injectors of the EFI system which promotes a clean and efficient burn for maximum economy and power.

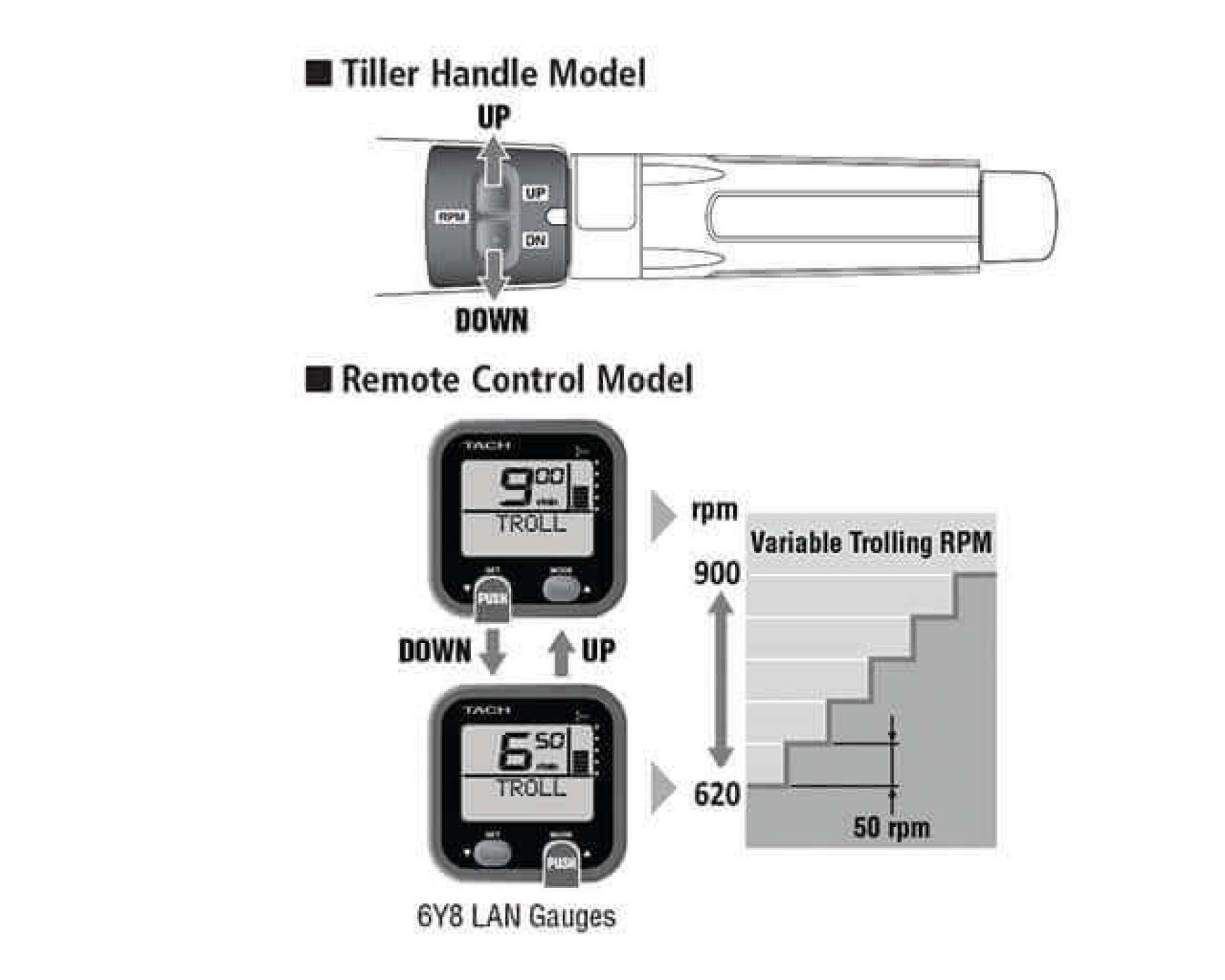

Variable Trolling Control

Yamaha’s variable trolling control allows you to precisely adjust the engine’s idling speed from 650 to 900 RPM in 50 RPM increments. The ability to finely tune the trolling speed allows fisherman to perfect their lure presentation when chasing different species of fish.

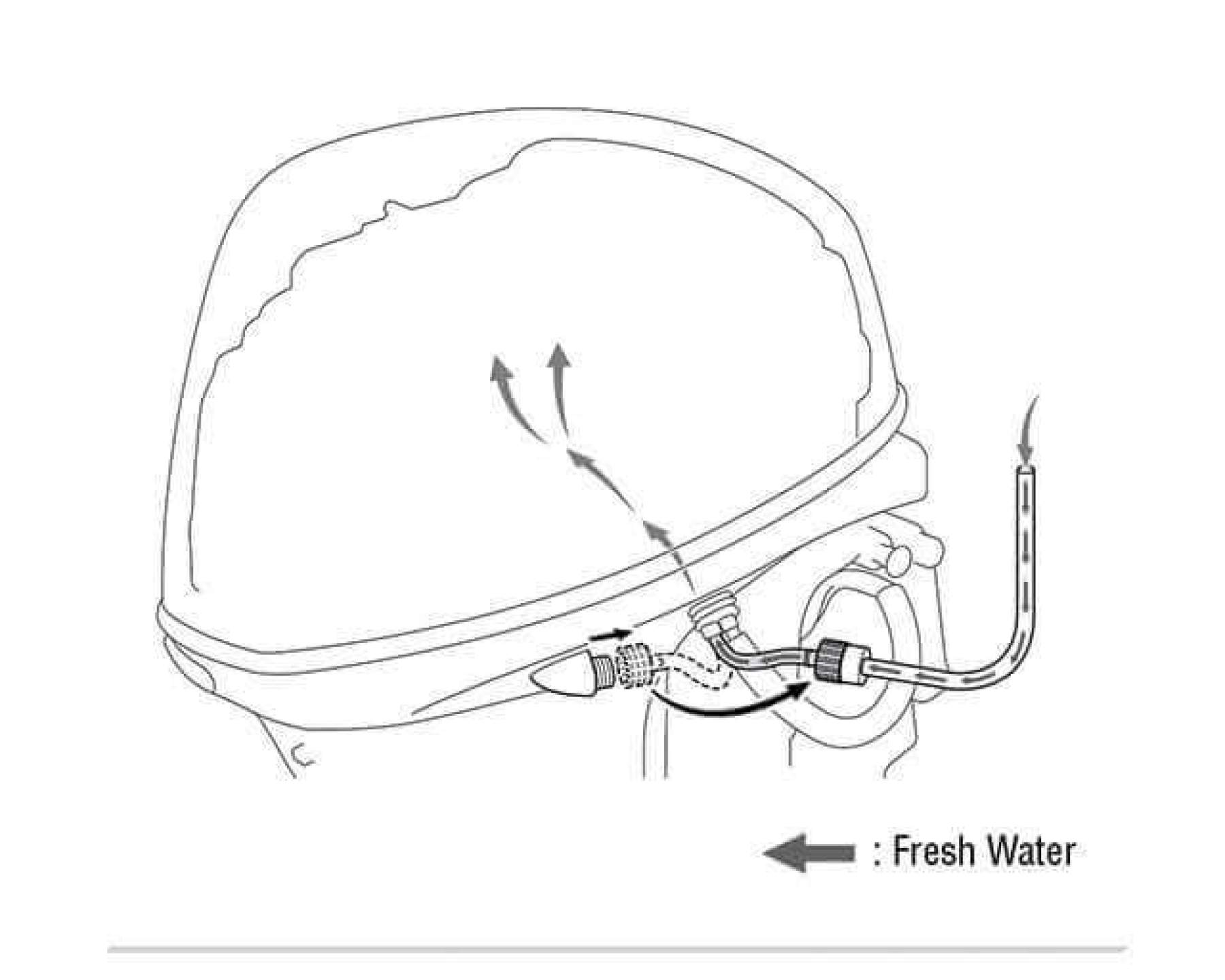

Fresh Water Flushing System

Simply connect a hose to the easy access connector to flush salt and dirt from the outboard without having to run the engine. Flushing the engine after each usage reduces corrosion and extends the engines life.

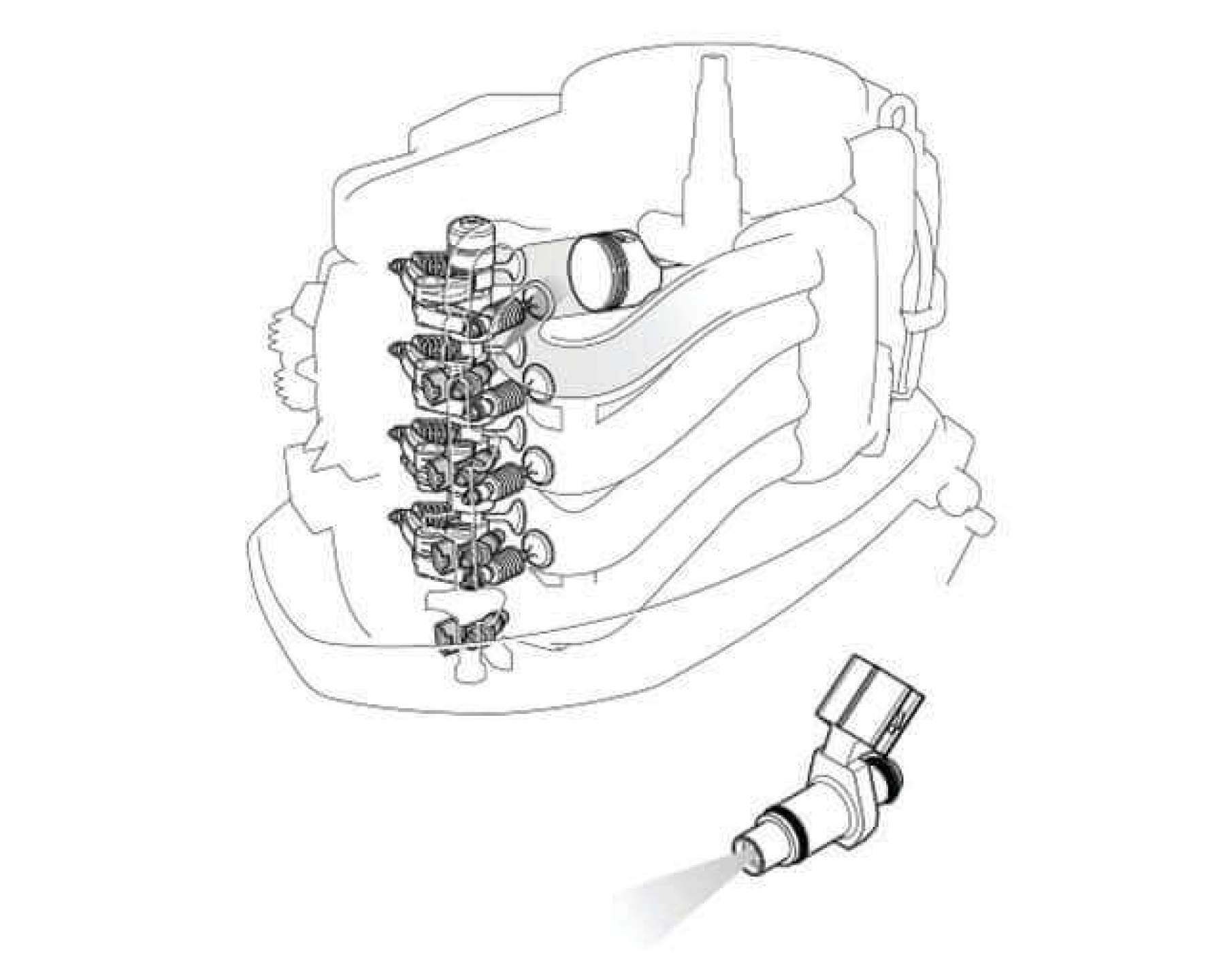

Electronic Fuel Injection

The Multi-Point Electronic Fuel Injection (EFI) system, injects the right amount of fuel into the combustion chamber at the optimum timing, taking into account engine speed and load requirements to achieve maximum engine performance including ‘first-time, every-time’ hot and cold starting and improved fuel efficiency.

High-Output Alternator

A 12-Volt 16-Amp high-output alternator ensures that power is always available to start the engine, even after long periods of idling or running at low revs. This not only provides extra starting power, but delivers sufficient power to run the wide array of on-board electronic devices used in modern boating.

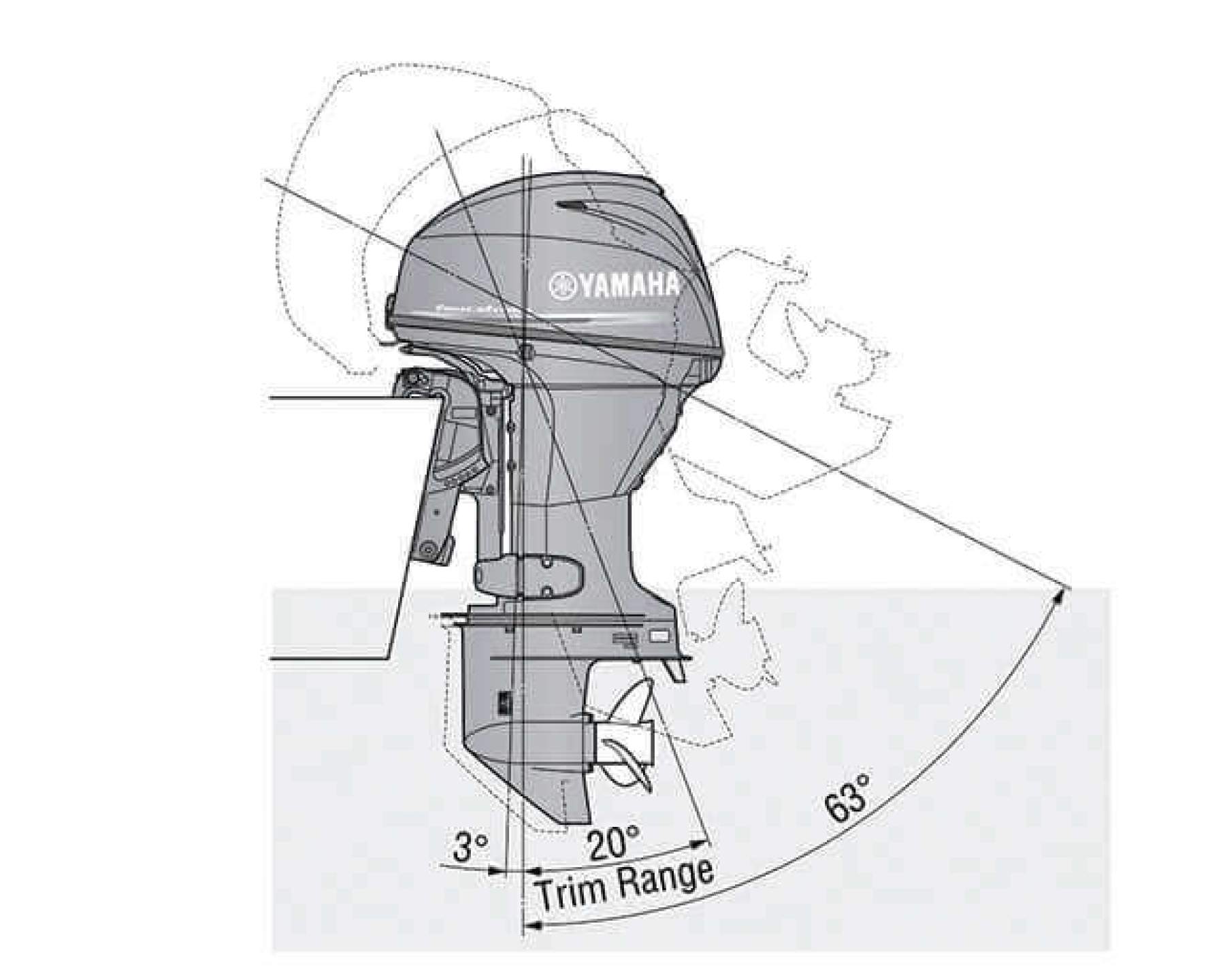

Power Trim and Tilt

Yamaha’s push-button trim control makes engine trim and tilt adjustments quick, smooth and easy, across a wide trim range. The negative trim settings allow for improved acceleration and the ability to bring the boat onto the plane more quickly.

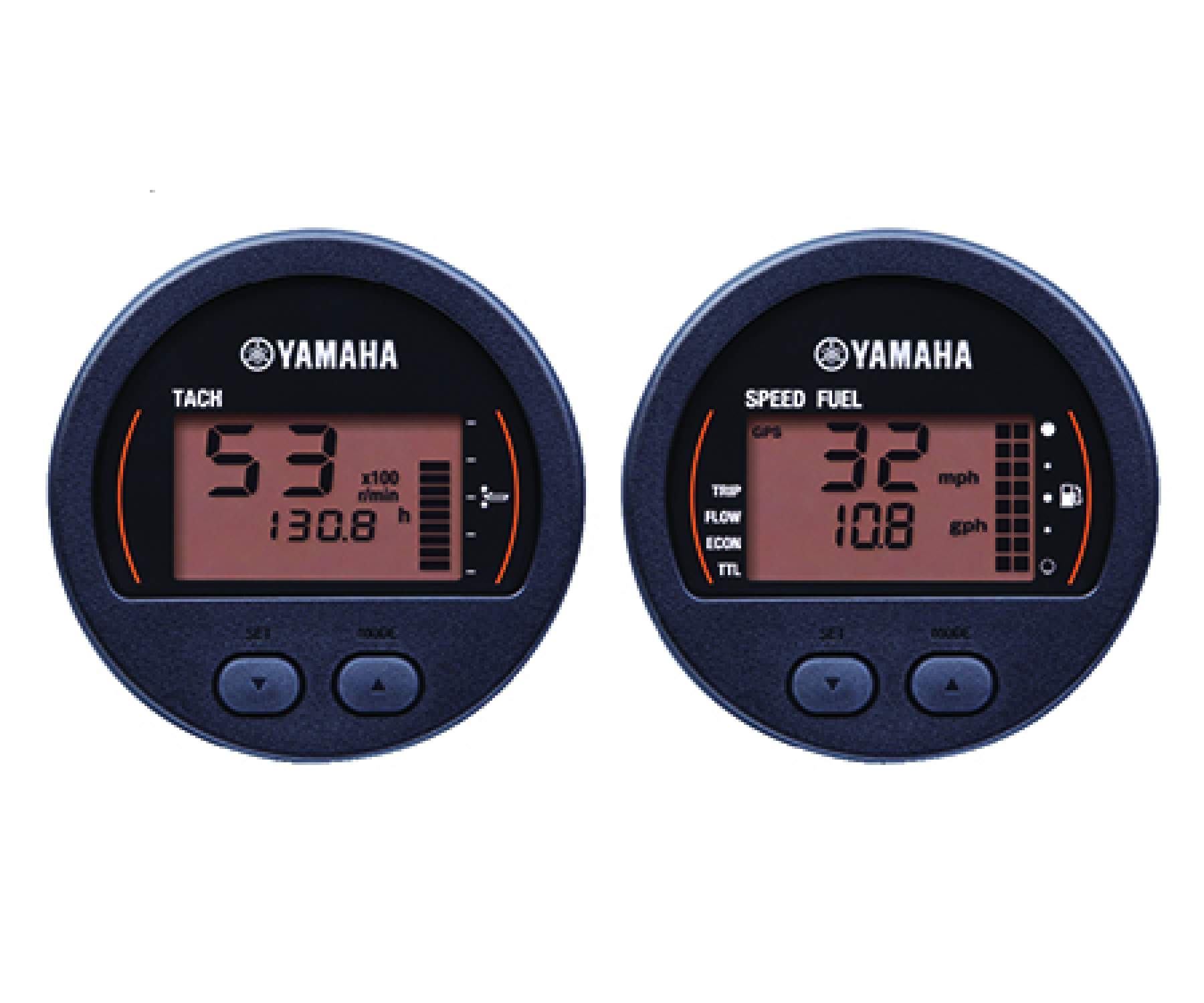

Command Link - 6Y8 Round Gauge

Using Local Area Network (LAN) technology, these digital round gauges provide accurate and real-time tachometer, speed and fuel management stats, including fuel flow/consumption/economy (up to two tanks), trim level, battery voltage, push button trolling speed adjustments and more.

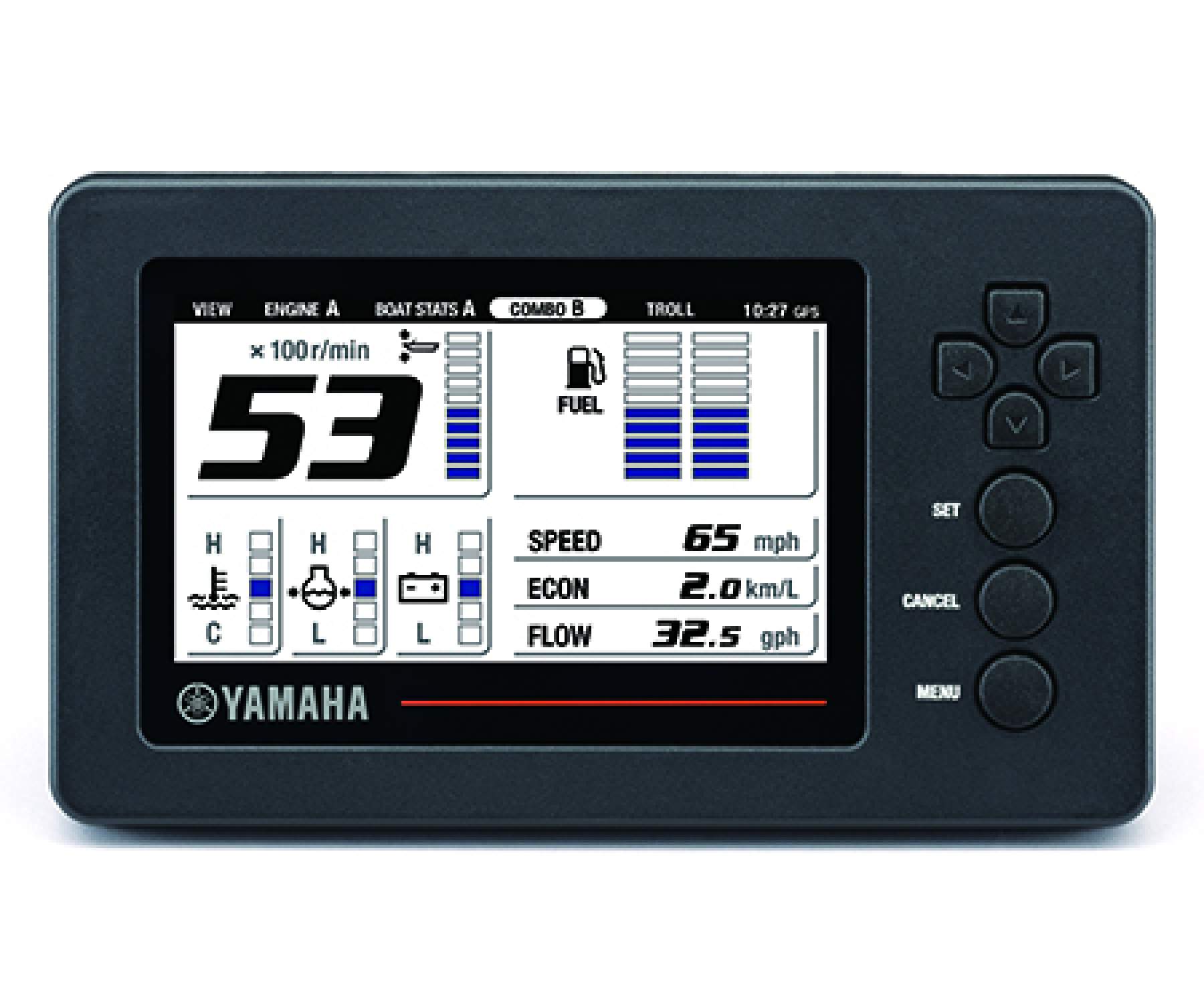

Command Link - 6YC High Definition Gauge

This high definition, colour display uses Local Area Network (LAN) technology to deliver accurate and real-time stats for single and twin engine setups. The customisable day/night gauge delivers information on fuel flow/ economy/ consumption, trim level, battery charge, speed, push button trolling and more.

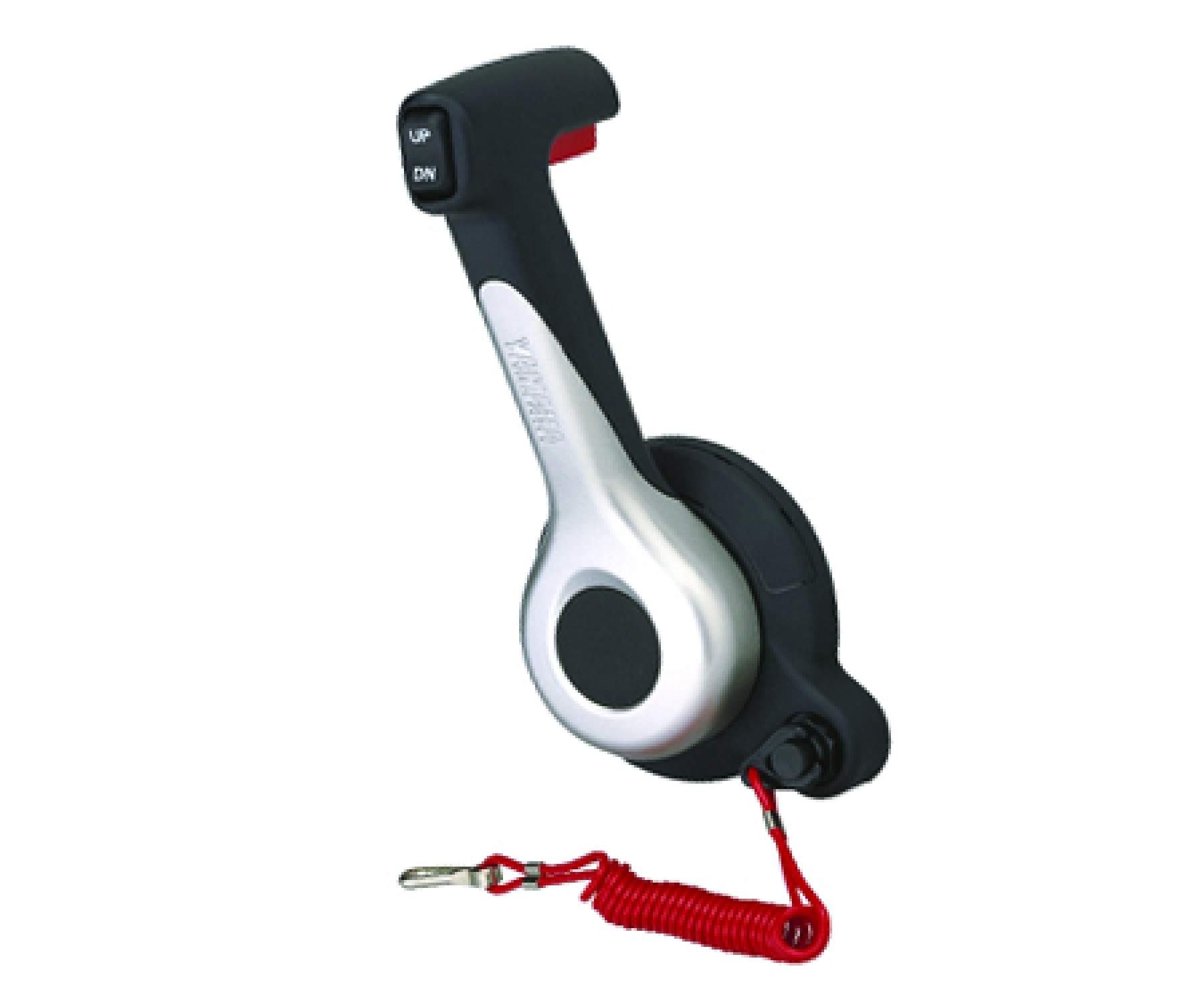

703 Side-Mounted Control

One of Yamaha's best selling controls, this mechanical remote offers comfort, simplicity and flexibility. With its new ergonomic grip, reversible right-hand or left-hand installation, and convenient trim and tilt operation, this control offers all-round functionality and value.

6x3 Concealed Side-Mounted Control

With its stylish chrome finish and ergonomic design, this mechanical control not only looks good, but provides effortless one-hand operation. The trim and tilt switch is comfortably located on the handle and features easily accessible neutral warm-up controls and externally adjustable throttle friction.

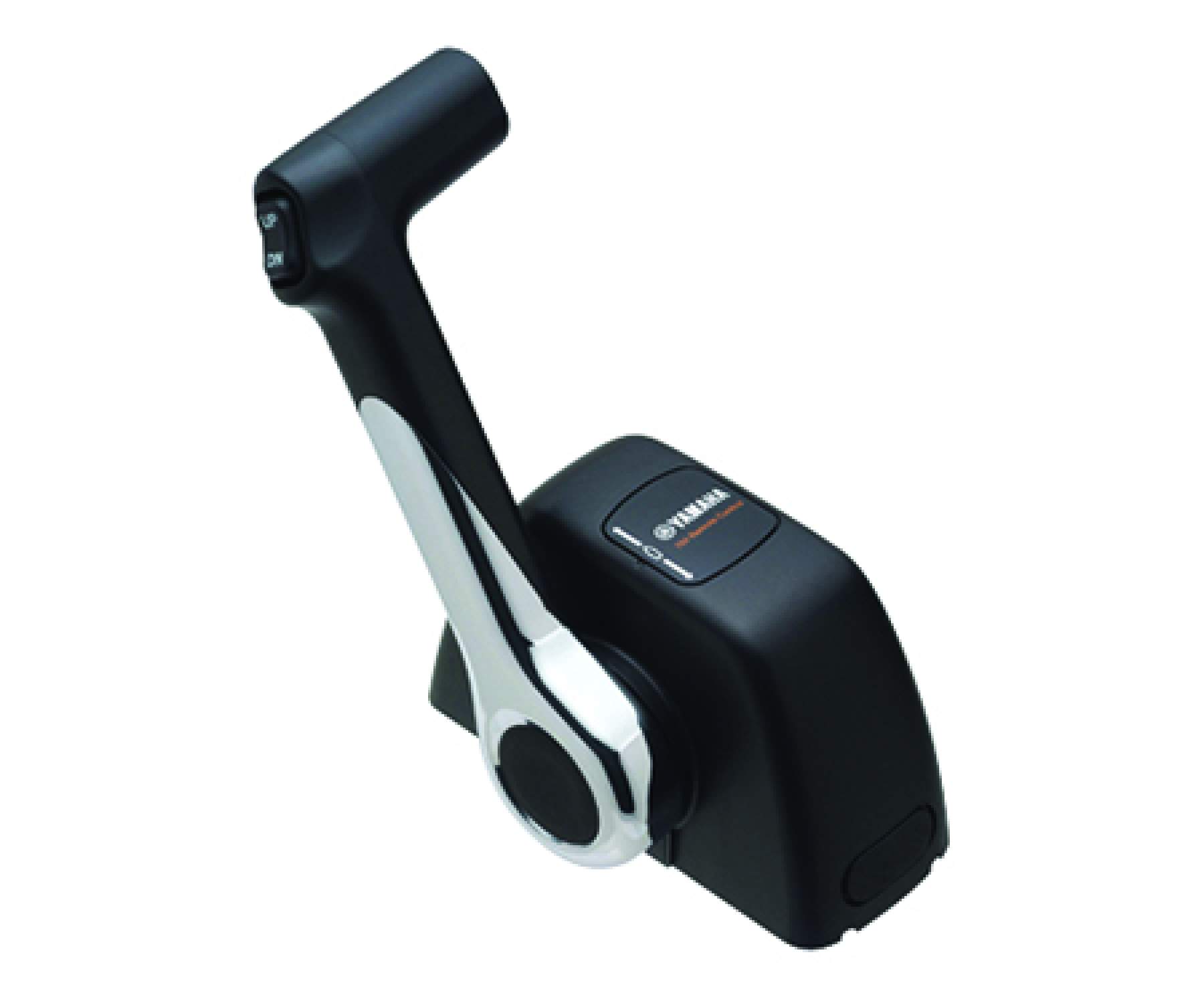

704 Premium Single Binnacle Control

This highly-polished, stylish looking, top mounted control allows for effortless one-handed control. The ergonomic design features a thumb operated trim and tilt switch built into the handle, as well as shift and throttle control functions, for convenient and comfortable operation.

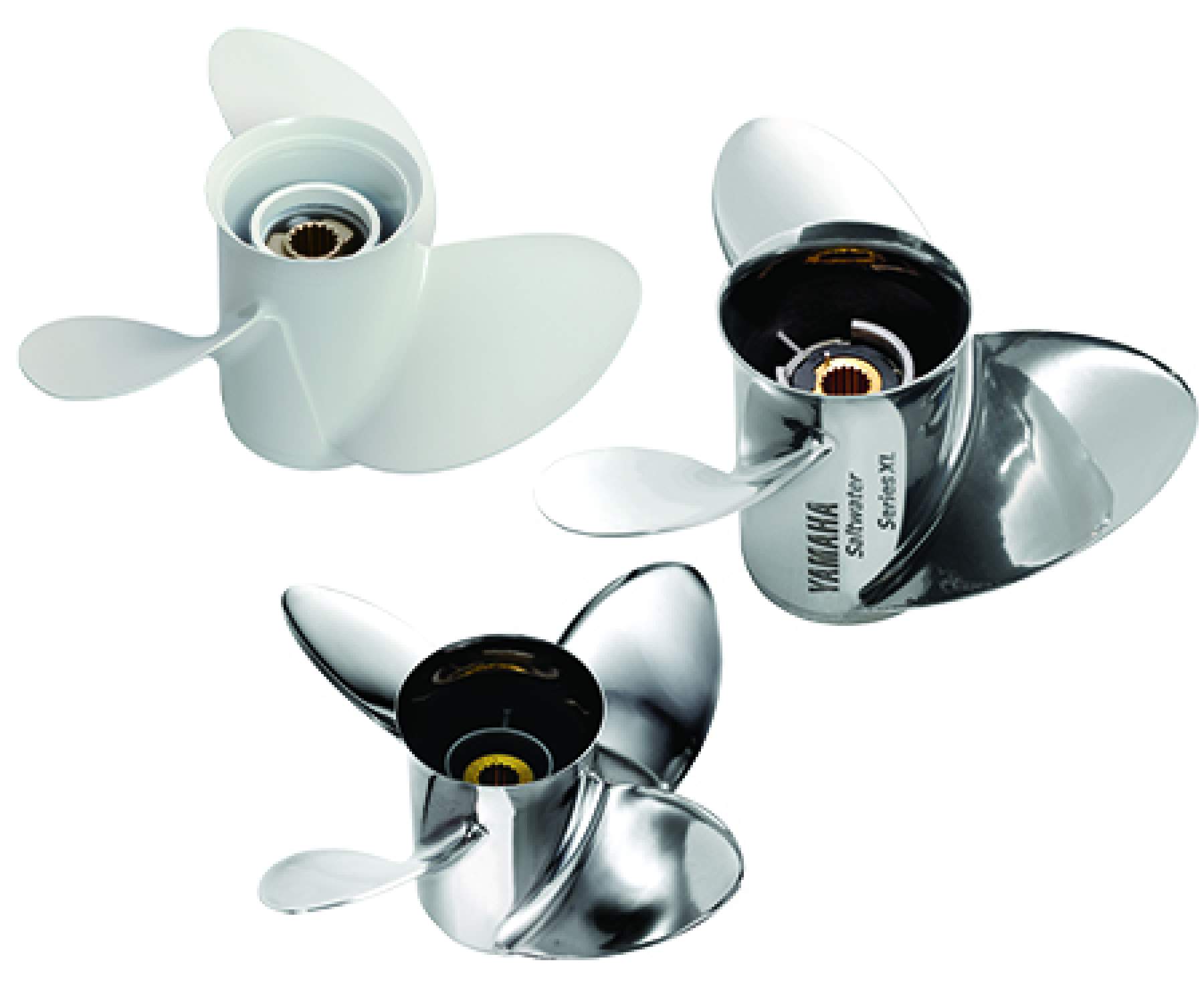

Genuine Yamaha Propellers

Prop choice makes a huge difference to outboard acceleration, top-end speed, handling and fuel efficiency. That is why Yamaha continues to push the technological boundaries in the design and development of our leading range of high performance props - ensuring every Yamaha outboard performs at its peak.

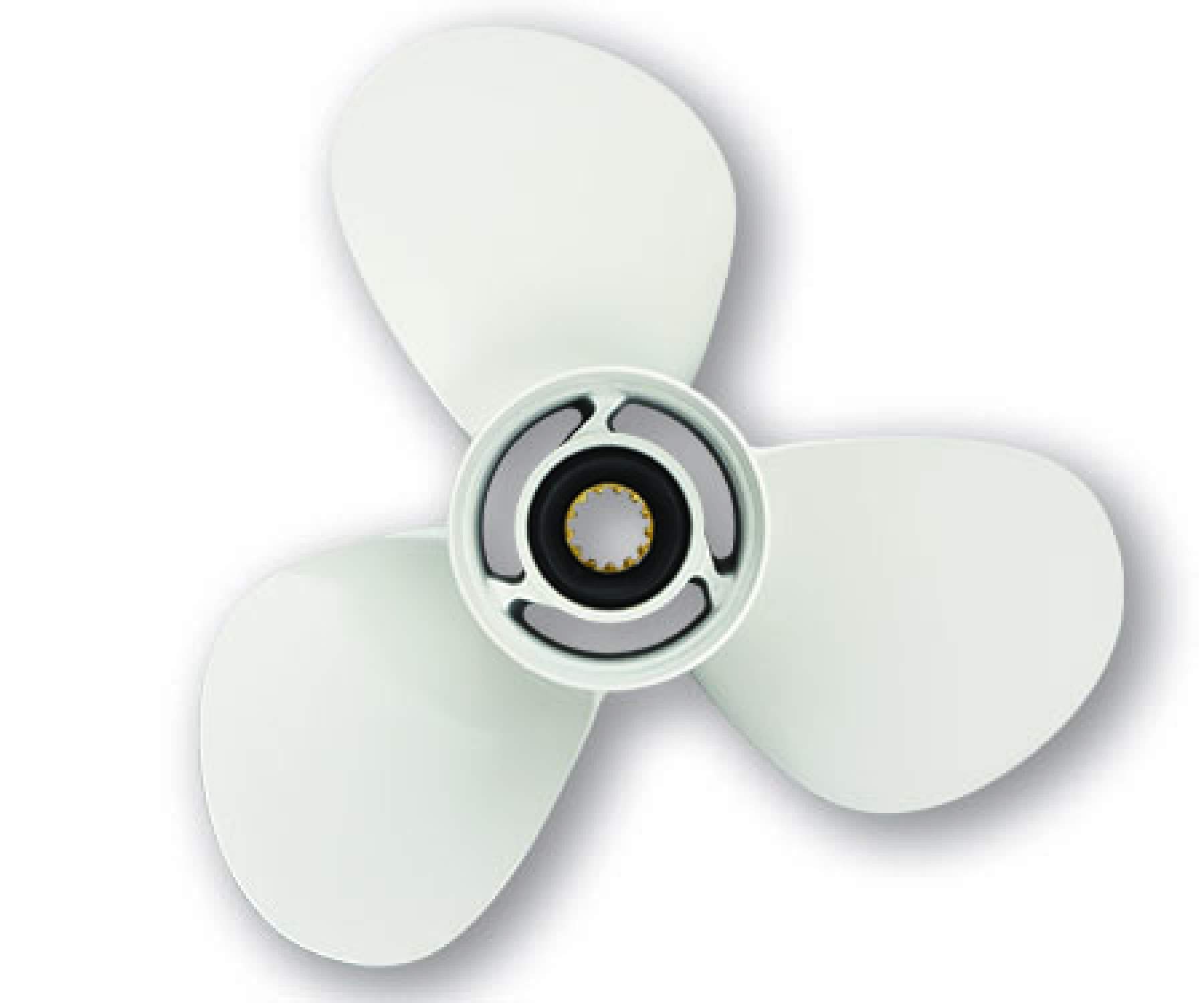

Alloy White G Series

These props deliver Yamaha's high-quality design and performance in a low-cost, lightweight propeller. They offer a good all-round choice for Yamaha outboards, coming in a wide range of sizes and pitches to suit every power requirement.


Remote Control Security System

Yamaha’s Customer Outboard Protection (Y-COP) engine immobiliser system is easy to use and highly effective in stopping unauthorised start-ups when your boat is unattended. Simply push the button on the simple remote to lock and unlock the engine. Optional accessory for mechanical steering and tiller models.

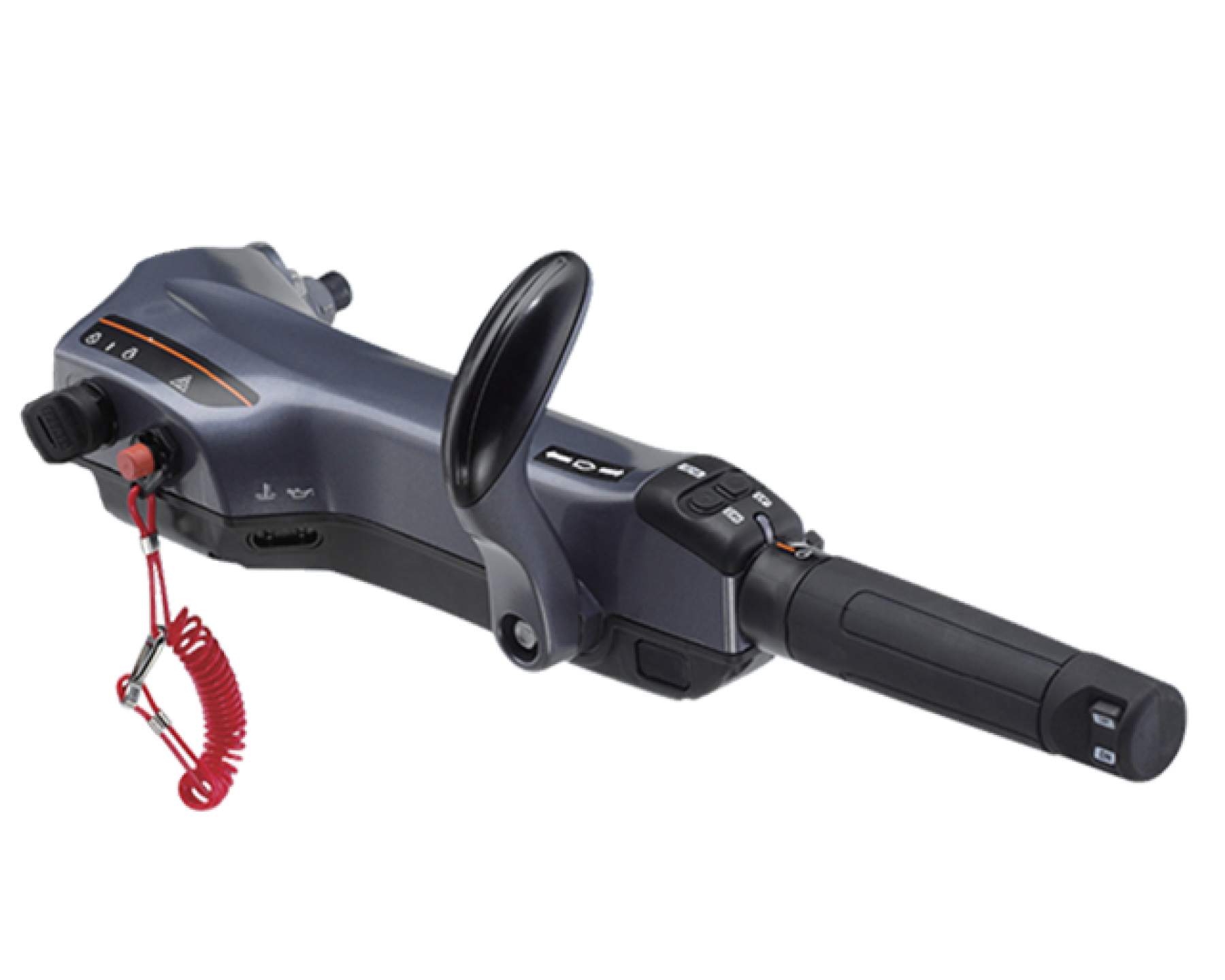

Multifunction Tiller Handle

With the latest technologies, ergonomic design and features, Yamaha's optional Multi-Function Tiller Handle delivers effortless control, maneuverability and comfort. Trim, shift, throttle, stop switch, variable trolling and integrated overheating and low oil pressure warning alerts are all built into the handle.

Yamaha Outboard Tech

Yamaha offers a range of rigging options to suit every boat. Check out the full suite of controls, gauges, switches, props and other technologies, plus outboard performance data.

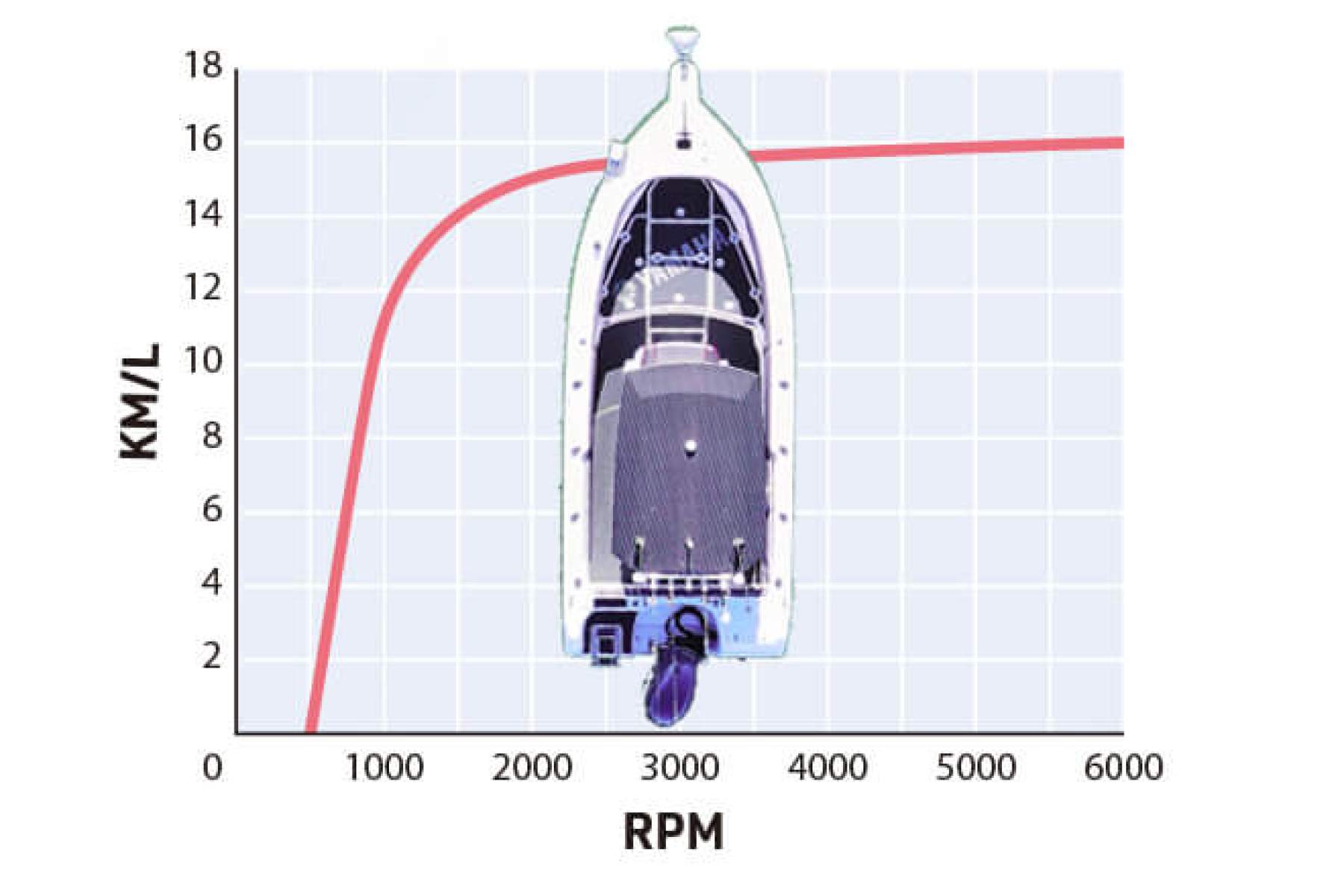

F60 Performance Data Reports

We take out the guess work in buying a new outboard, by rigorously testing our engines on Australia's most popular boat brands. See how the F60 performs for acceleration, fuel economy and top-end speed on your favourite boat.

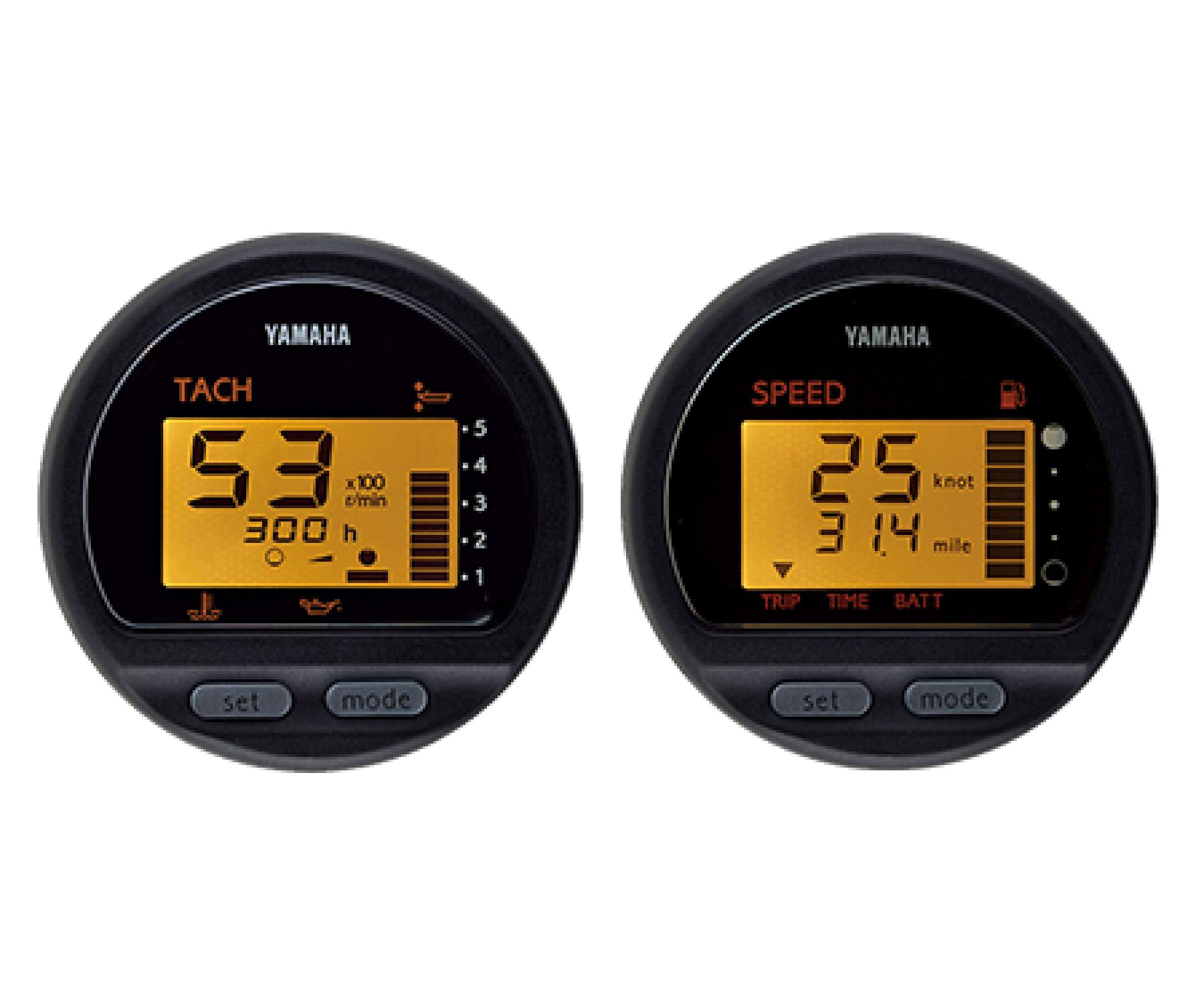

Conventional - 6Y5 Round Gauge

Yamaha’s most affordable Tachometer and Speedometer gauges offer RPM, Trim Angle, Oil Pressure, Overheat Warning, Trip Hours, Total Operating Hours, Speed, Trip Distance, Time, Fuel Level, Low-Fuel Warning and Battery Voltage/Warning.

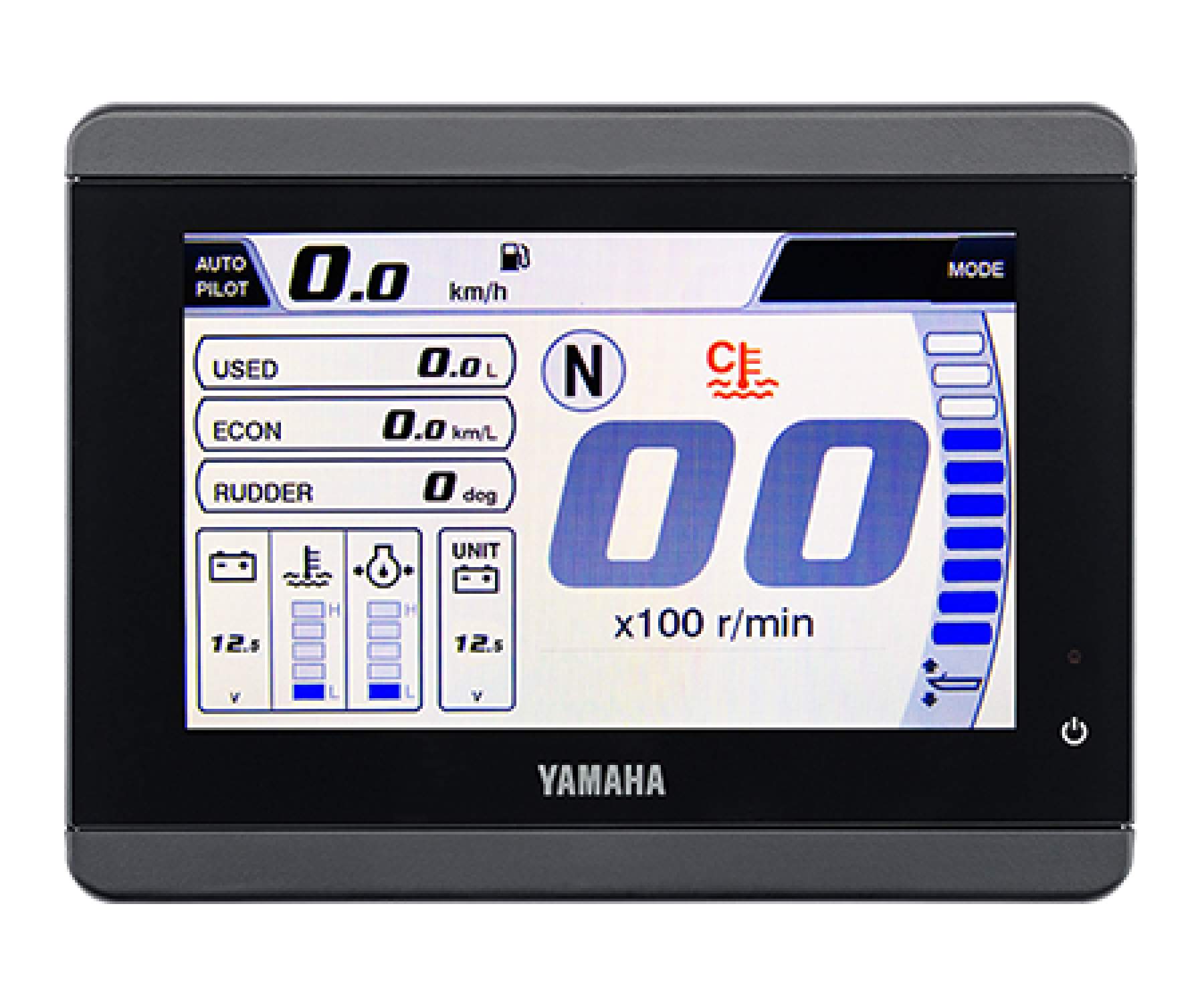

CL5 Premium Touchscreen Display

The all-new, low profile Yamaha Command Link CL5 touchscreen display is small in size but big on information, features and capability.

This display is suitable for all Yamaha Electronic Fuel Injected (EFI) engines and can monitor up to four outboards. It's sophisticated, modern design features intuitive operation and matches the latest boat console trends, while its compact size leave more room on the console for other electronics.

Specifications

Engine Type 4-Stroke, SOHC In-line 4
Displacement (cc) 996.0
Bore x Stroke 65 x 75
Recommended Max PRM 5000-6000
Lubrication System Wet-sump
Fuel Management EFI
Ignition TCI
Starter System Electric
Alternator Output 12V - 16A with Rectifier Regulator
Operation Method Mechanical Control (Optional Tiller Handle Available)
Tilt and Trim Method Power Trim & Tilt
Digital Guages
Digital Network Guages with Fuel Management Optional
Gear Ratio 1.85 : 1
OEDA Emission Rating 3
Height L: 527 [20.7]
Weight L: 113
